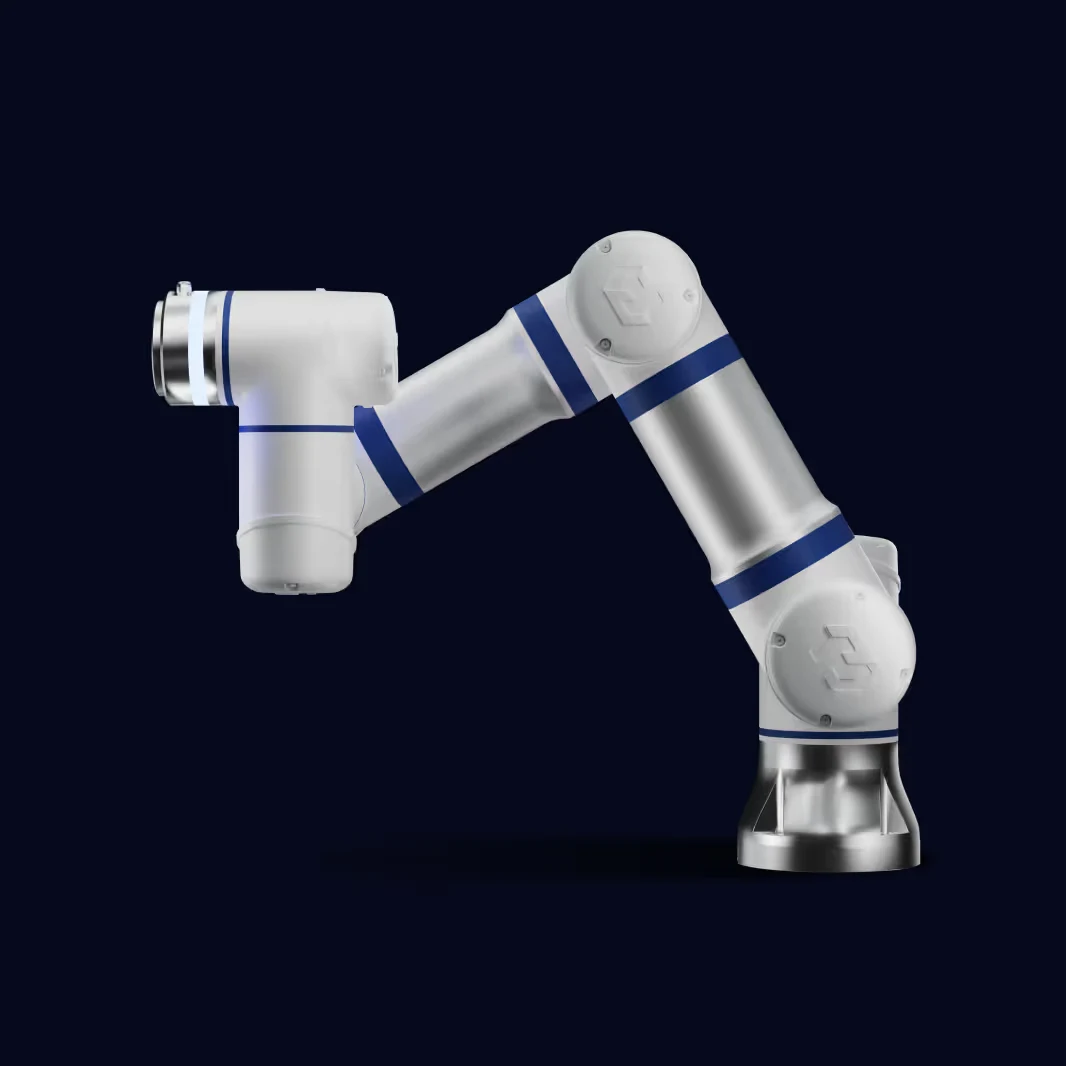

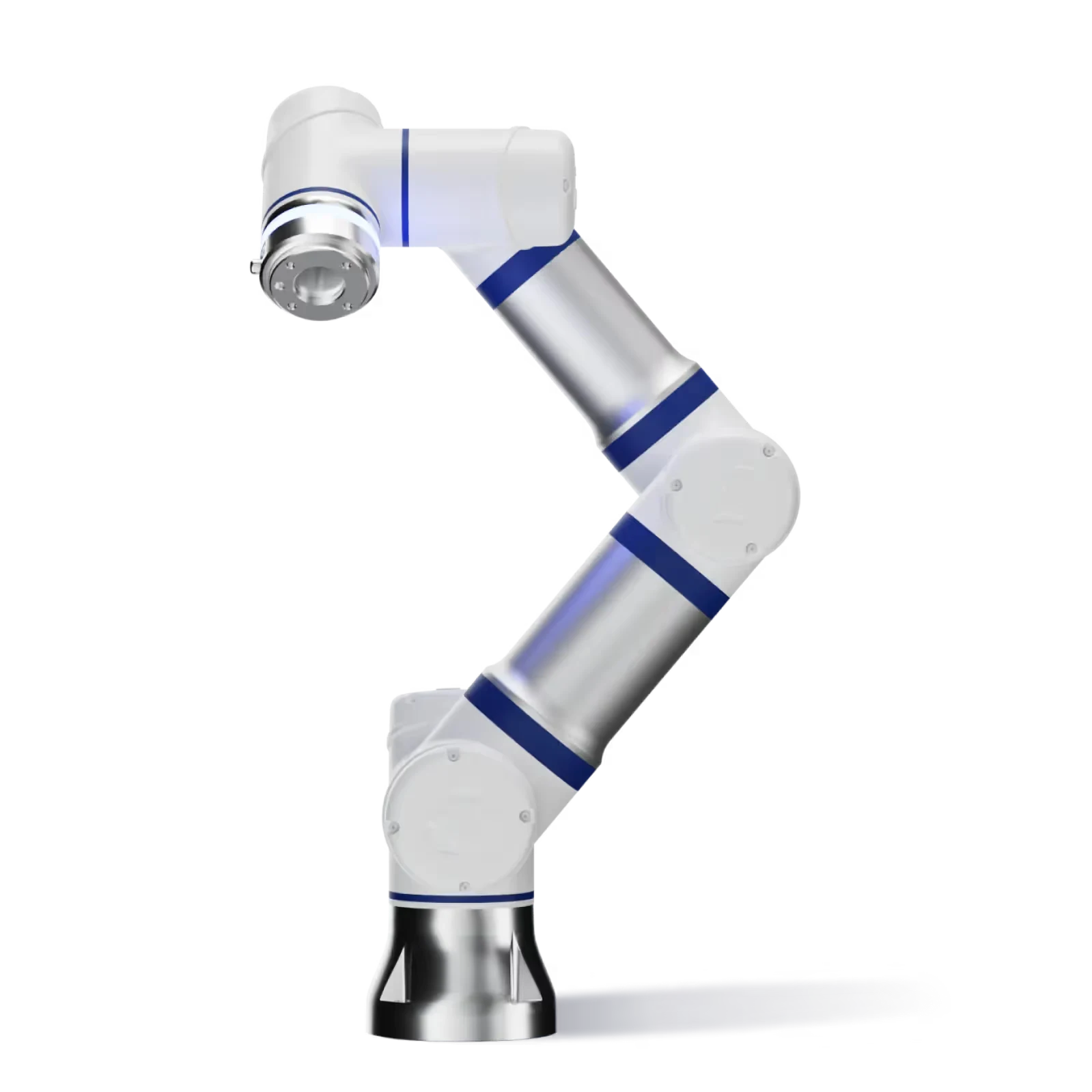

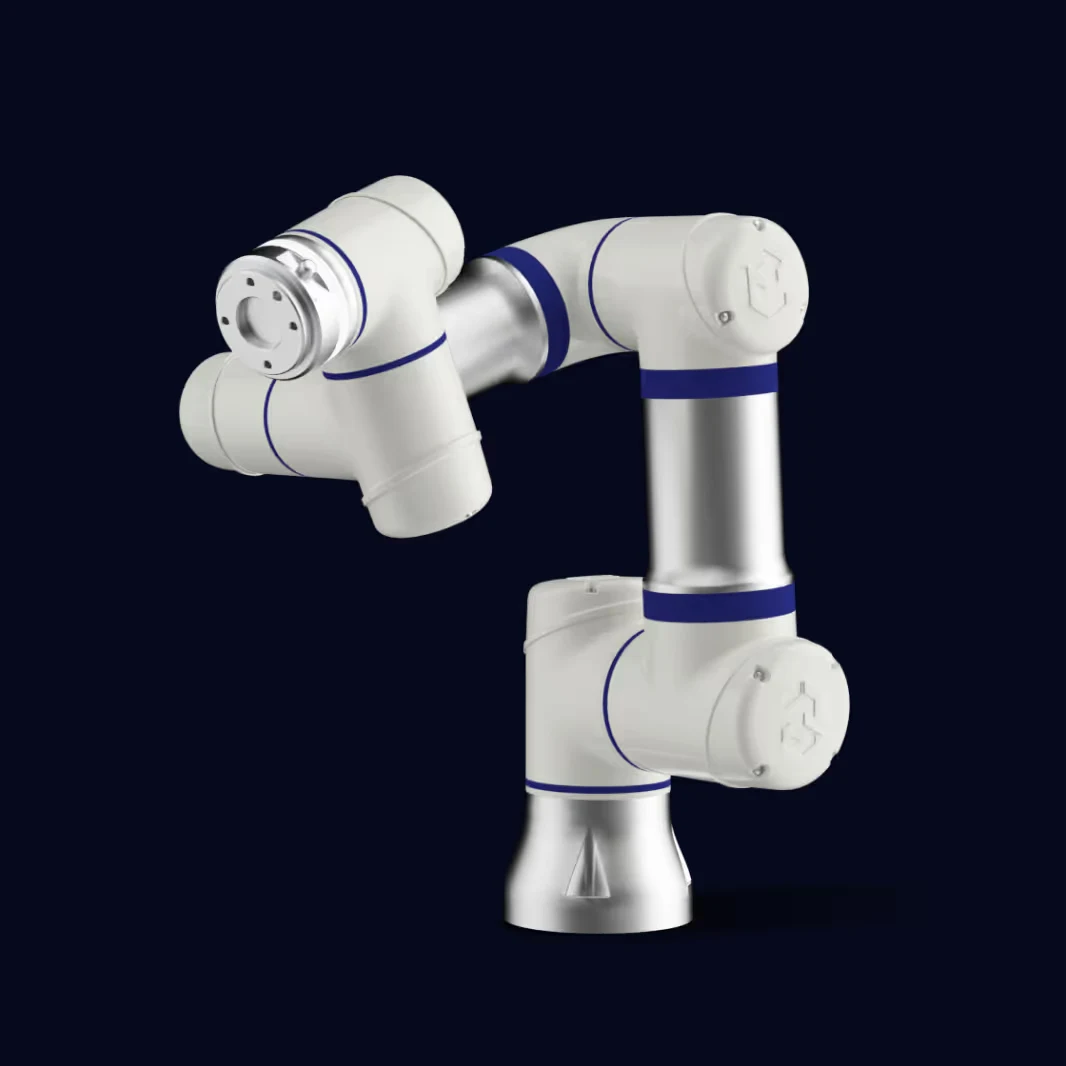

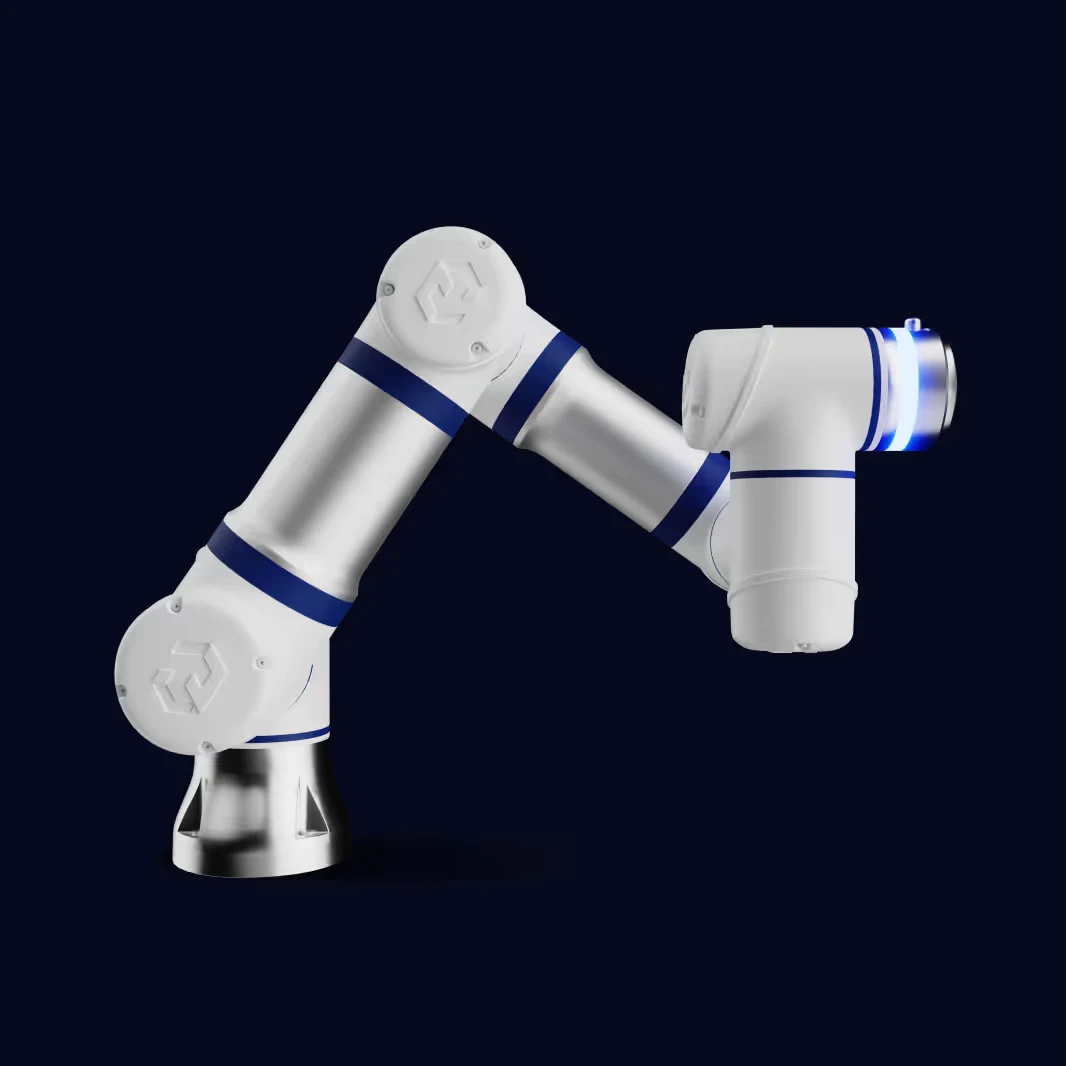

Compact six-axis collaborative robot for light automation, with 3 kg payload, 624 mm reach and ±0.02 mm repeatability.
Selector specifications
| 产品型号 | CS63 |
|---|---|
| 自由度 | 6 |
| 防护等级 | IP65 |

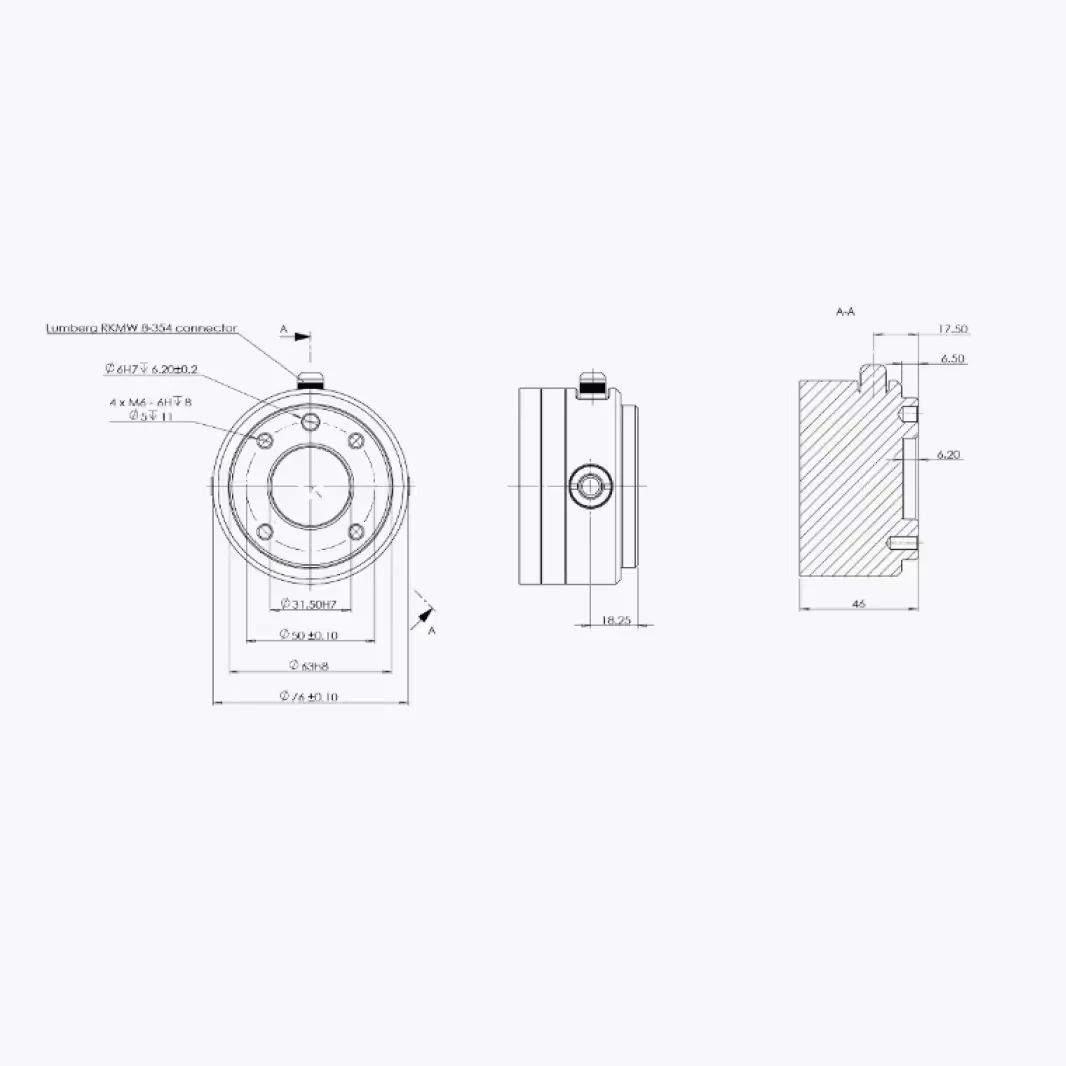

| 技术扩展参数 | Model CS63; tool I/O: M8, 8-pin; 4 configurable DI, 4 configurable DO, 1 AI, 1 AO |
| 通信协议 | RS485, Modbus RTU; Ethernet TCP/IP; EtherNet/IP and PROFINET slave |
| 工作温度 | -10~50 °C |
| 重复定位精度 | ±0.02 mm |
| 重量 | 16 kg |

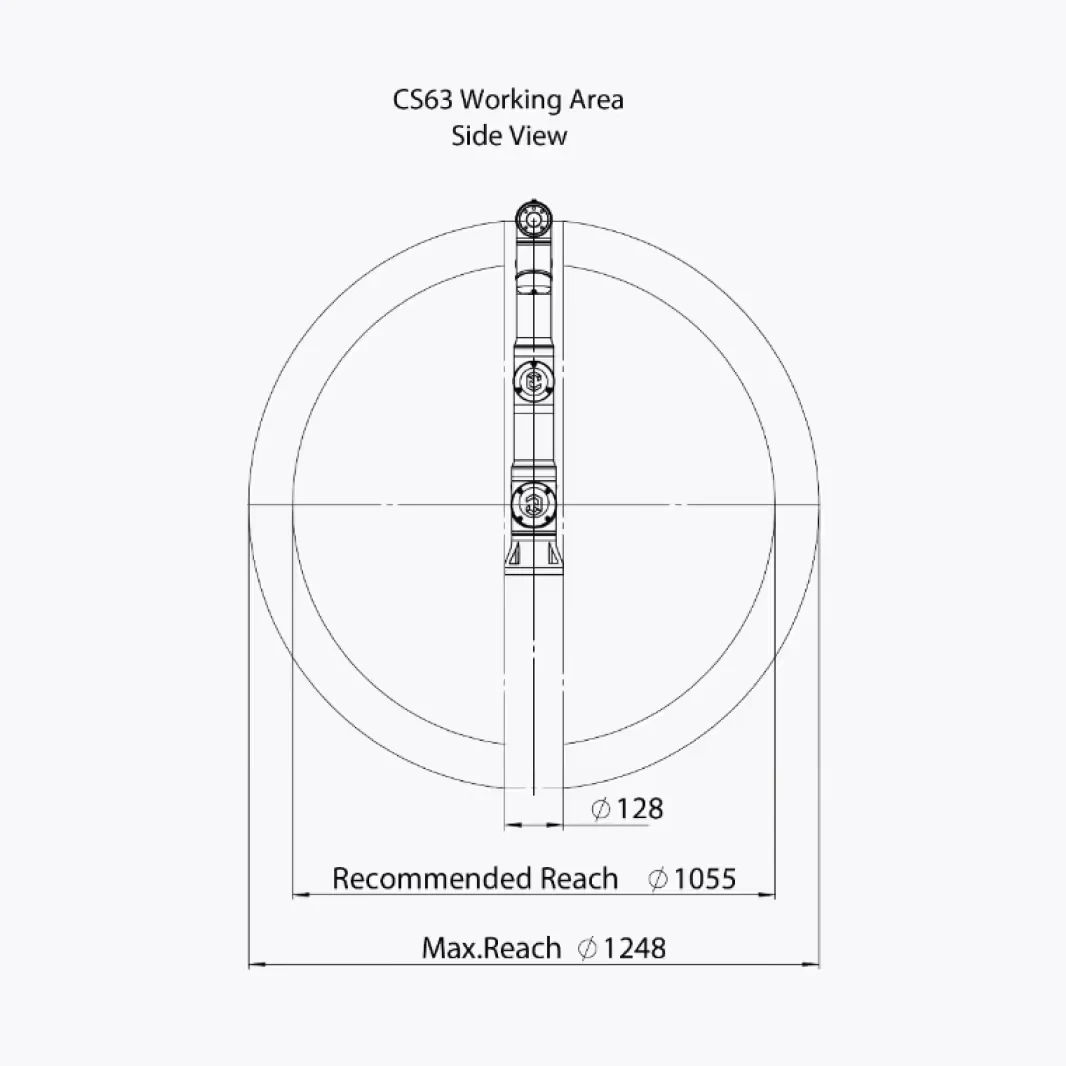

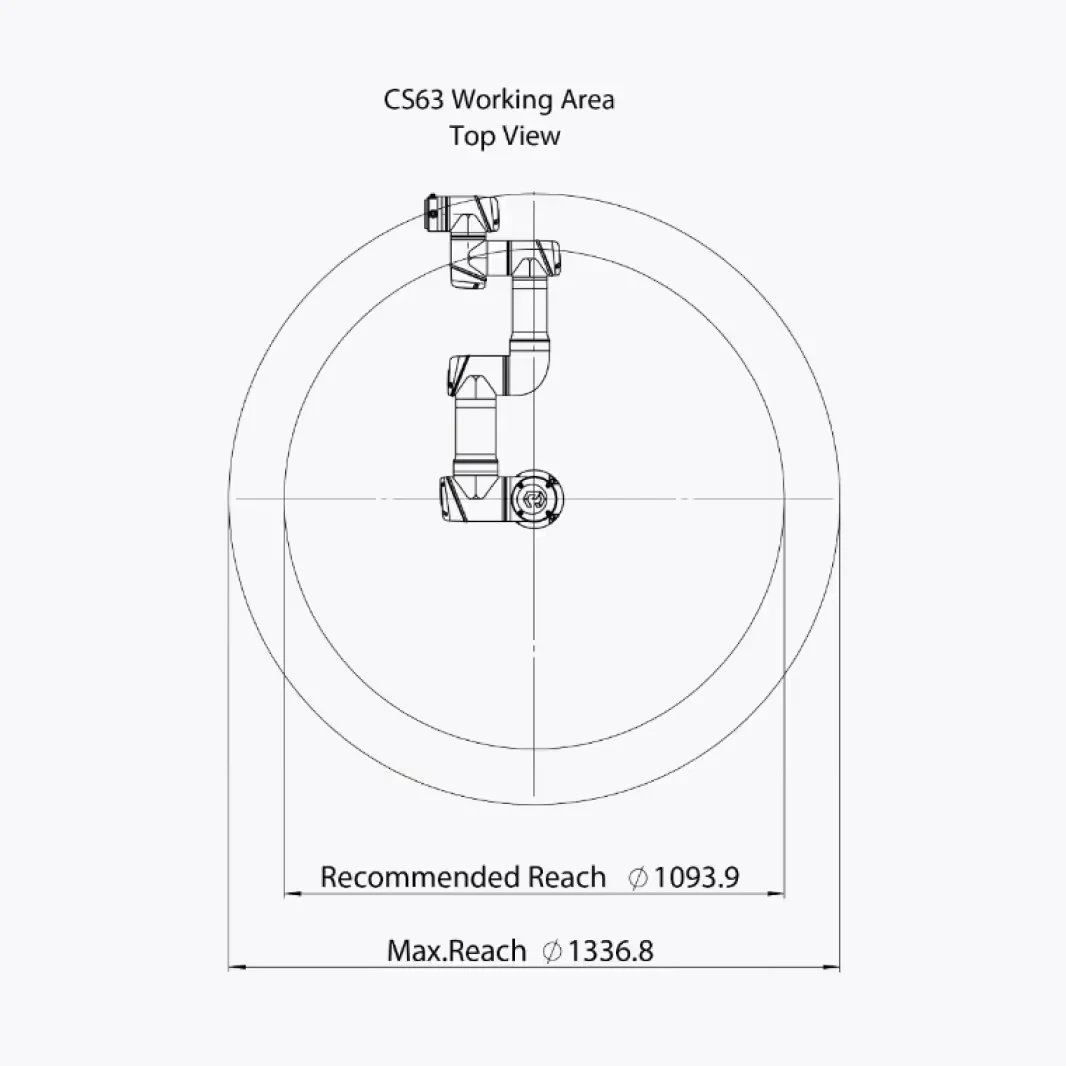

| 工作半径 | 624 mm |
| 额定负载 | 3 kg |
Technical extensions
Typical TCP speed 2.0 m/s; footprint Ø128 mm. Manufacturer overview identifies this as typical TCP speed. Optional IP68 availability and configuration details should be confirmed against order-specific documentation. Source: https://www.eliterobots.com/cobots/cs63
