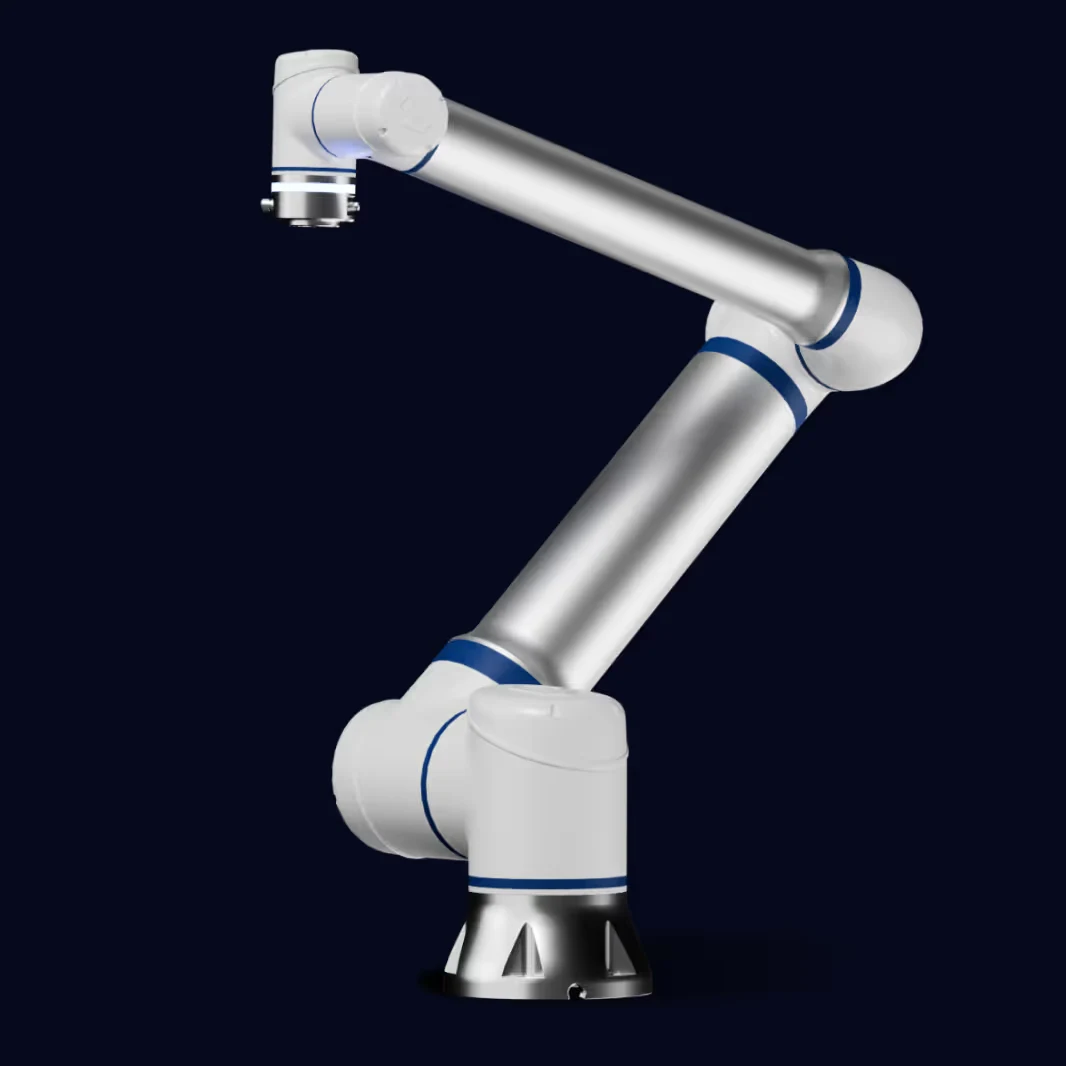

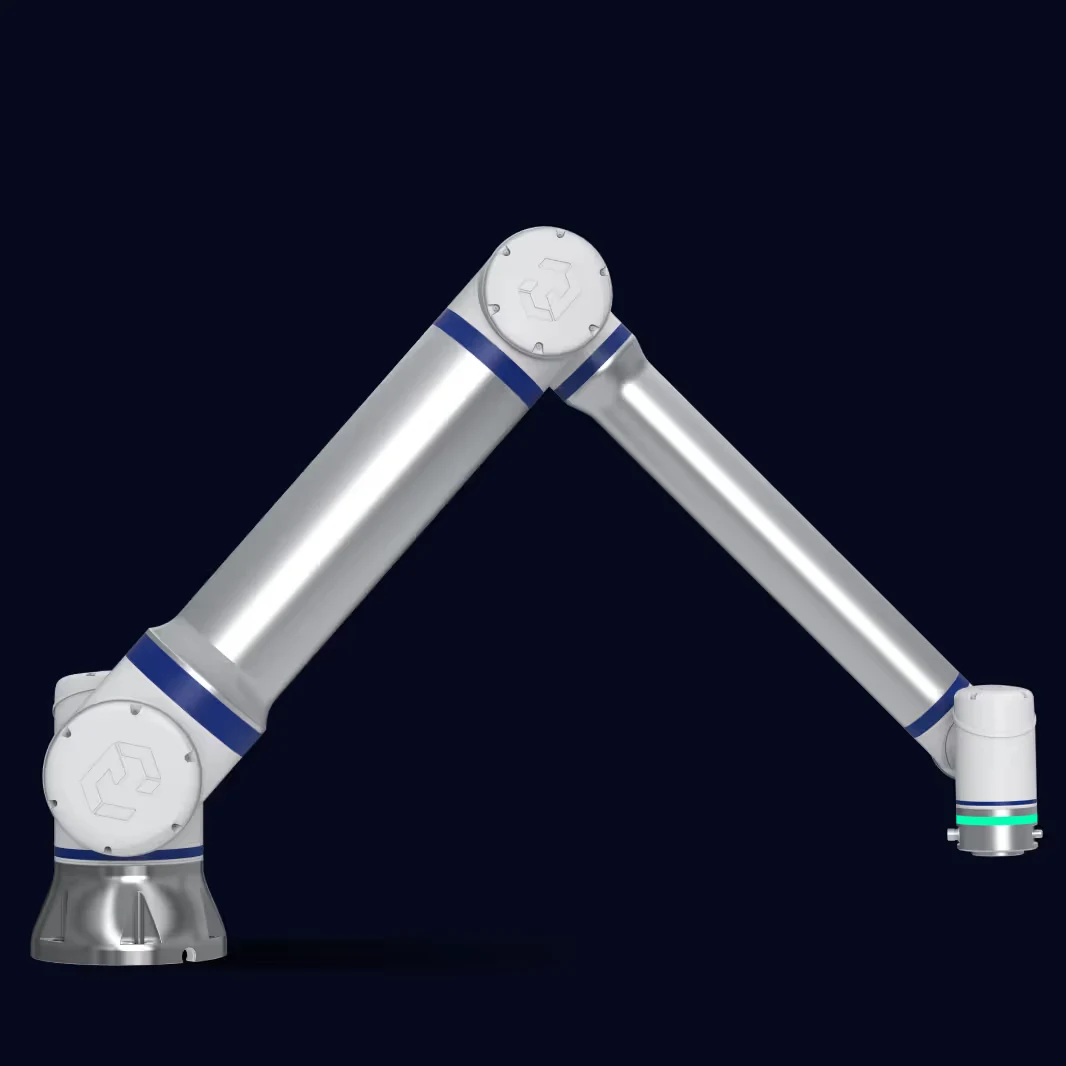

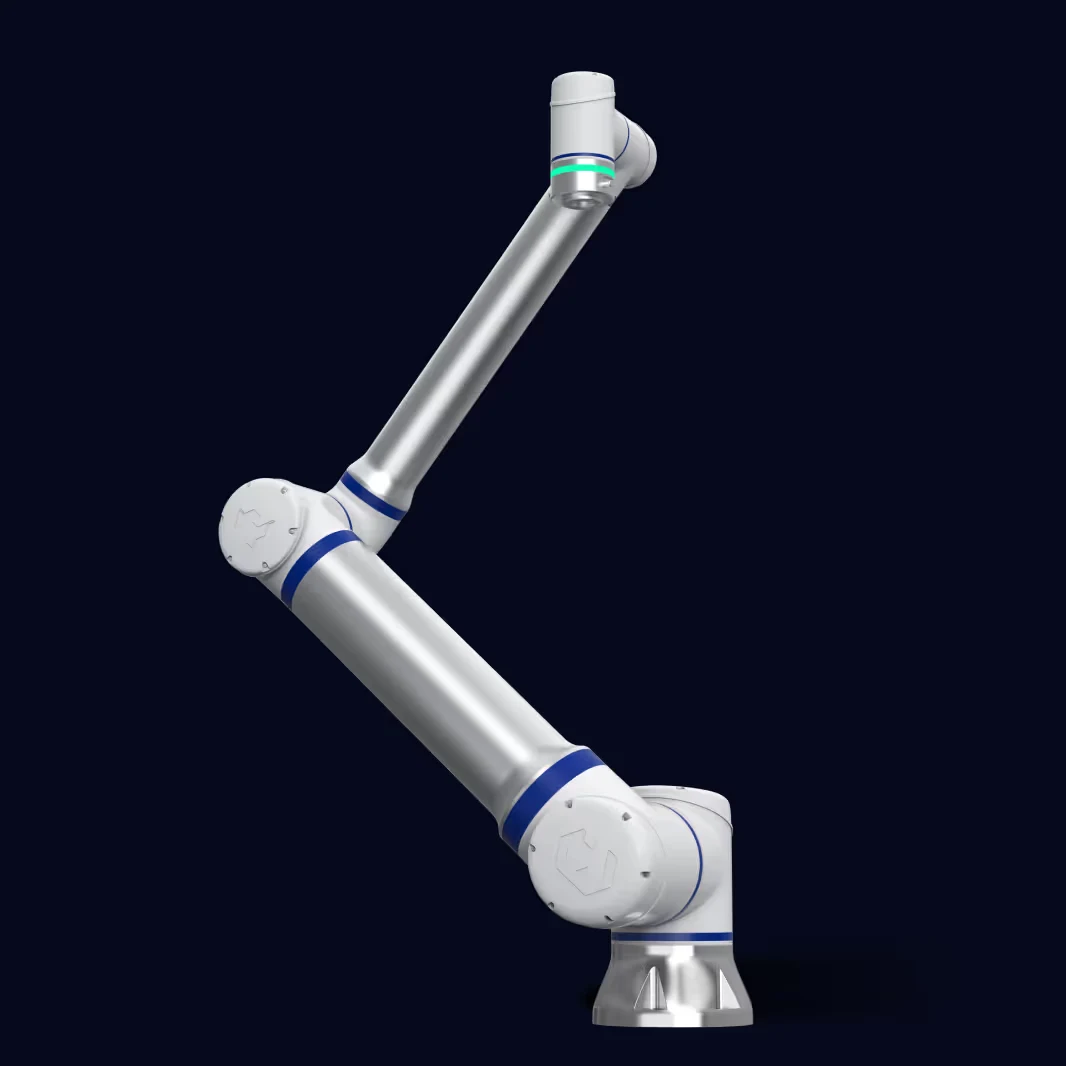

Five-axis high-payload collaborative robot designed for palletizing, with 30 kg payload, 1,522 mm radius and ±0.1 mm repeatability.
Selector specifications
| 产品型号 | CS530H |
|---|---|
| 自由度 | 5 |
| 防护等级 | IP65 |
| 技术扩展参数 | Model CS530H; tool I/O: M8, 8-pin; 4 configurable DI, 4 configurable DO, 1 AI, 1 AO |
| 通信协议 | RS485, Modbus RTU; Ethernet TCP/IP; EtherNet/IP and PROFINET slave |
| 工作温度 | -10~50 °C |
| 重量 | 58 kg |
| 重复定位精度 | ±0.1 mm |
| 工作半径 | 1522 mm |
| 额定负载 | 30 kg |
Technical extensions
TCP speed 4.0 m/s is specified as maximum (not typical); footprint Ø240 mm; arm weight 58 kg; typical power use 600 W; temperature range −10 to 50 °C; optional IP68; model has five axes. Source: https://www.eliterobots.com/cobots/cs530h
